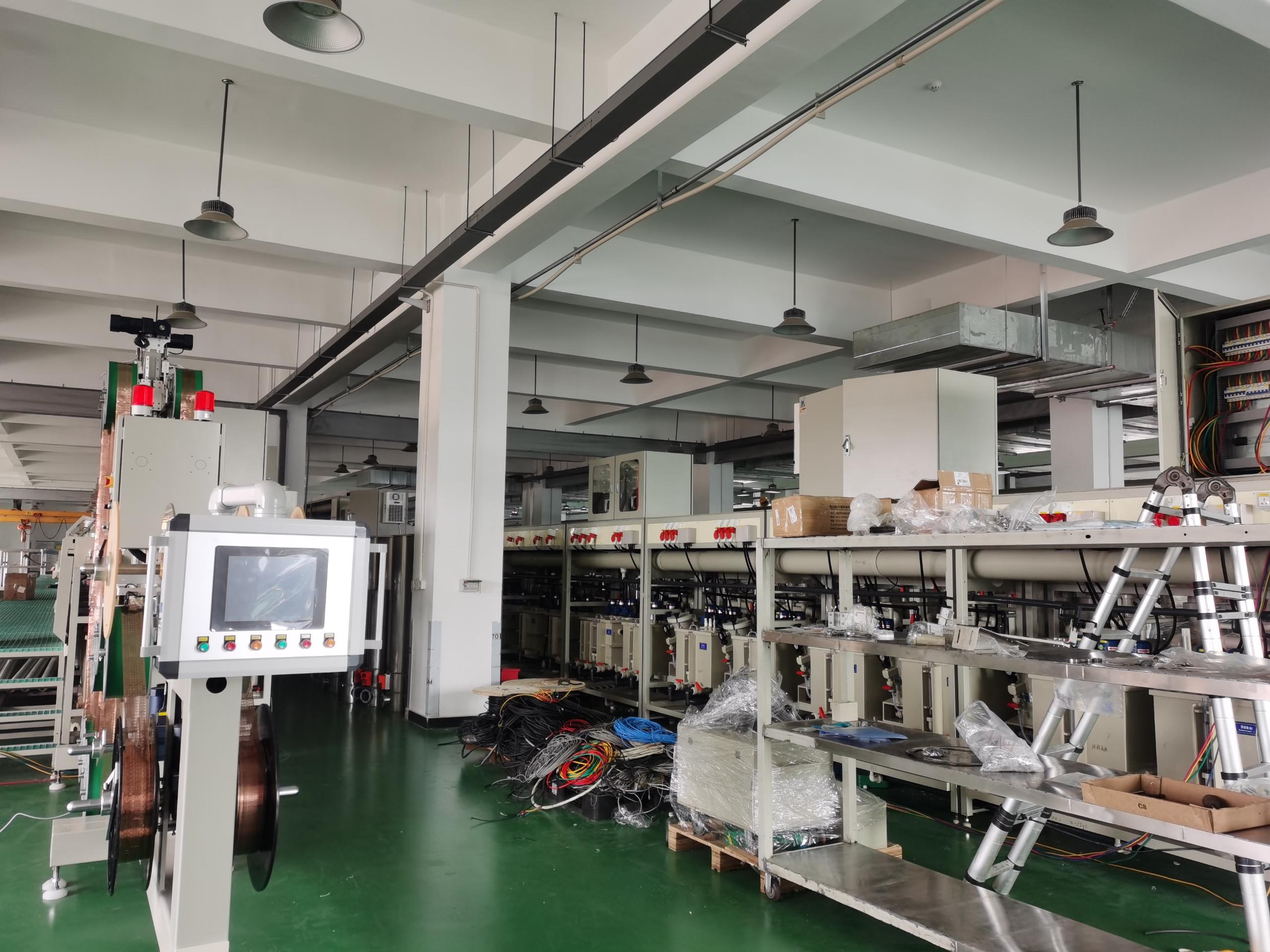

该全自动智能电镀线专为引线框架高精度电镀设计，集成视觉定位与闭环控制，实现上料、除油、电镀、清洗、烘干全流程无人化作业。具备微电流密度调控及槽液在线监测，确保镀层均匀一致。模块化结构支持快速换型，提升效率与良率。
适用产品宽度：10-300mm
片厚：0.1-0.6mm
镀区精度：±0.075mm
行片速度：2-18m/min
规格：2-4通道
This fully automated intelligent electroplating line is specifically designed for high-precision electroplating of lead frames. It integrates visual positioning and closed-loop control, enabling unmanned operation throughout the entire process, including material loading, degreasing, electroplating, cleaning, and drying. It features micro-current density regulation and online bath monitoring to ensure uniform and consistent plating layers. The modular structure supports rapid changeover, enhancing efficiency and yield.
Applicable product width: 10-300mm
Sheet thickness: 0.1-0.6mm
Plating area accuracy: ±0.075mm
Film running speed: 2-18m/min
Specification: 2-4 channels
